KINGCROWN 10-Inch 360° Panoramic All-in-One Vehicle Camera System
This 10-inch 360° panoramic all-in-one vehicle camera system provides a seamless 3D bird-eye view for trucks, vans, buses, and fleet vehicles. With four 170° wide-angle cameras, 1080P recording, GPS navigation, WiFi/4G connectivity, and parking assistance, it enhances driver awareness in tight spaces, urban areas, and global fleet operations.
Product Overview

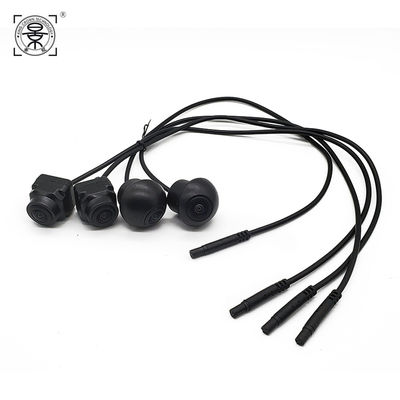

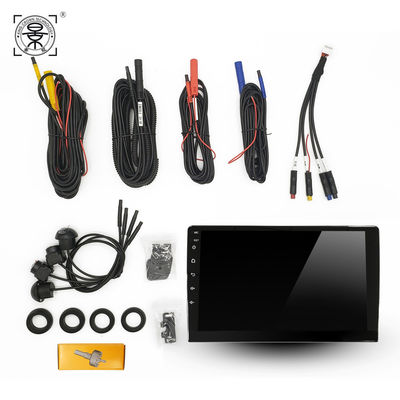

The KINGCROWN 10-inch 360° panoramic system integrates four ultra-wide 170° cameras to produce a complete 3D bird-eye perspective around the vehicle. Designed for trucks, vans, buses, and commercial fleets, it delivers 1080P clarity, parking monitoring, reverse trajectory guidance, GPS navigation, and wireless connectivity. Its rugged IP67 cameras ensure reliable performance in all weather conditions.
Key Features
- Full 360° Panoramic Coverage using four synchronized 170° cameras for a seamless overhead view
- 10-Inch HD Touchscreen supporting multiple split-view modes
- 1080P Six-Glass Lens Cameras for high-precision day and night imaging
- IP67 Weatherproof Design suitable for rain, dust, and harsh outdoor environments
- Reverse Dynamic Trajectory Guidance that responds to steering angle
- 24/7 Parking Monitoring & Loop Recording for continuous protection
- Built-in WiFi/4G + Bluetooth Music for multimedia and remote connectivity
- Integrated GPS Navigation ideal for delivery fleets and long-distance drivers
Applications
- Heavy-duty trucks and semi-trailers
- Passenger buses, shuttle fleets, school buses
- Delivery vans and logistics vehicles
- Municipal service vehicles and utility trucks
- Construction, mining, and engineering vehicles
- Large SUVs, MPVs, and commercial fleet upgrades
Technical Specifications
| Parameter |
Specification |
| Screen |
10-inch IPS display |
| Camera Channels |
4 (front / left / right / rear) |
| Lens Angle |
170° wide angle |
| Resolution |
1080P Full HD |
| Lens Type |
Six-glass optical lens |
| Viewing Modes |
3D bird-eye + split view |
| Connectivity |
WiFi / 4G optional |
| GPS |
Built-in module |
| Waterproof Rating |
IP67 |
| Video Format |
AHD |
| Voltage |
12V-24V |
| Memory |
2GB + 32GB |
| Recording |
Loop recording |
| Night Vision |
Enhanced low-light imaging |
| Operating Temperature |
-20°C to 70°C |
Why Choose This Product
- Designed and manufactured by VisionCarCamera with over 19 years of experience
- Reliable 360° viewing solution tailored for global commercial fleets
- Professional-grade optics ensure superior clarity and long service life
- Perfect for blind-spot elimination, tight-space maneuvering, and safety compliance
- Wide compatibility with trucks, vans, buses, and heavy-duty vehicles
Engineered for buyers in Middle East, Europe, South America, India, Russia, Africa, and Southeast Asia who require advanced 360° monitoring and parking assistance systems for large vehicles and fleet safety applications.
360 surround view DVR kit, heavy-duty truck safety system, commercial fleet monitoring unit, full HD panoramic camera kit, 3D driving support system, WiFi/4G navigation monitor, blind-spot reduction camera, multi-channel automotive recorder.
Frequently Asked Questions
What is your product warranty terms?
Generally, we provide 12 months warranty for all customers.
What is your MOQ requirement?
Depend on different product, small quantity order can be acceptable.
What kind of payment term can be acceptable?
T/T or LC is acceptable.
What is the lead time of the samples and mass goods?
The lead time of the sample: 5-7 days. The mass goods should be negotiated.
What is your after sales service rule?
Generally, we give suggestion of spare parts when customer place order. And we will provide technical support online, during the customer meet problem of installation.
VisionCarCamera Brand Advantages
VisionCarCamera has been a leader in automotive electronics for over 15 years, providing innovative and reliable solutions such as 4-channel DVR recorder. Our expertise includes developing advanced camera systems, vehicle monitoring technologies, and safety devices. With OEM and ODM capabilities, we offer customized solutions for clients worldwide. Our products comply with international certifications like ISO9001, CE, and RoHS, ensuring top-quality standards. Serving markets across Europe, the United States, the Middle East, and more, VisionCarCamera is your trusted partner for cutting-edge vehicle safety systems.
